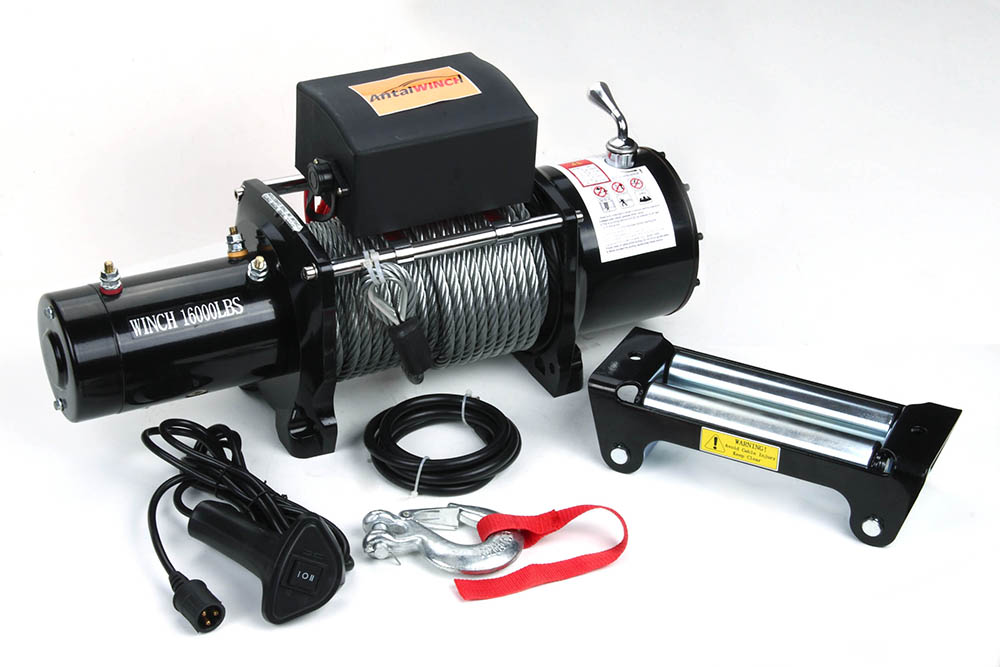

AT16000-(A)

16000LB, WINCH SPECIFICATIONS

Rated Line Pull

16000LBS (7257kgs) single line

Motor

4.2kw/5.6hp, series wound

Control

Remote switch, 11.5ft(3.5m)lead

Gear train

3 Stage Planetary

Gear train ratio

358:1

Clutch

Sliding Ring Gear

Braking Action

Automatic In-The-Drum

Drum Size

2.5"(88)mm(8.8")221.5mm

Cable

10.5mmX26m

Overall Dimensions

23.9"x4.5"x9"(606mm190mm254mm)

Mounting Bolt Pattern

253mm114mm 12

Weight

N.W.54kg G.W.56Kg

Packing Size

655235410mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)

Line speed ft/min(m/min)

Current A

0

25.6(7.8)

85

4000(1814)

12.2(3.7)

235

7000(3175)

9.2(2.8)

290

10000(4536)

6.9(2.1)

350

13000(5897)

5.6(1.7)

395

16000(7257)

4.6(1.4)

435

LINE PILL AND ROPE CAPACITY IN LAYER

Layer

Rated Line Pull

lbs(kgs)

Total Rope on Drum

ft(m)

1

16000(7257)

16(5)

2

13700(6214)

36(11)

3

11500(5216)

62(19)

4

9700(4400)

85(26)
